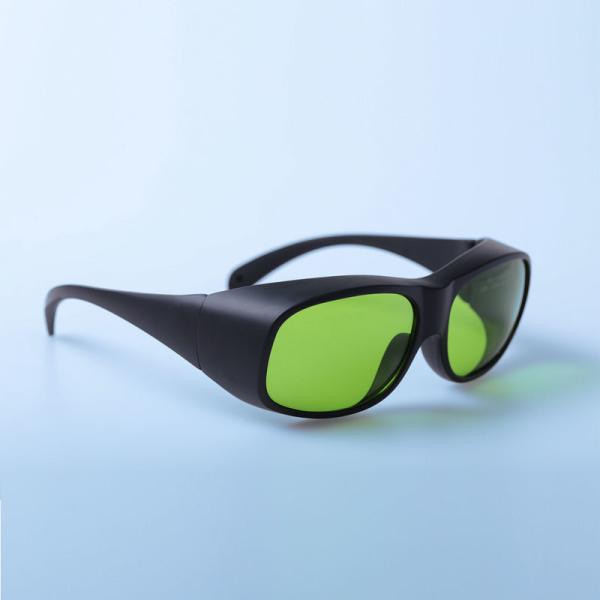

| Model No.: | YHP | Protect Wavelength: | 800-1100nm |
|---|
| Transmittance: | 60% | OD Value: | OD5+@800-1100nm & OD7+@1060-1070nm |
|---|
| Material: | Polycarbonate | Suit for: | 808nm, 980nm, 1064nm etc., |
|---|
| Frame#: | 33 | Application: | Diode Laser, ND:YAG Laser |
|---|
Advantage:
1. High Protection Level.
2. 4 kinds of frames Options ( #33/#36/#52/#55).
3. Guarantee:5 years lifetime and one year warranty.
4. Free Sample available.
5. OD Value based on real parameters.
Related Products:
Our factory laser safety glasses strictly according to ANSI Z136
and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
Quality Control
QC INTRODUCTION:
Our QC department is composed of 3 QC engineers and 5 QC
assistants,with the expanding of our output,more QC staffs are
needed. We strictly conduct international quality standards to meet
the clients demands.
TESTING DETAILS:
Incoming materials have to pass strict examination before being
accepted.
How can I find suitable laser safety glasses?
1. Choose a comfortable frame
Selecting a frame in terms of its weight, shape, and size to meet
your individual needs is extremely important. We consider the
user's individual needs and provide comfortable eyewear with a
fashionable design that can be worn for a long stretch of time.
There is four frames style for your selection as above, Frame
33/36/52/55.
2. VLT (Visible Light Transmittance)
In visible light, the attenuation of light by a filter is defined
as visible light transmittance. According to ANSI Z136.7, the
testing of VLT is determined by a standard light source. If VLT is
less than 20%, users should remain in a light area and ensure their
working environment has extra illumination. The higher the
transmittance, the better the visual view.
3. Choose the relevant wavelength
The laser safety glasses cannot be used against other wavelengths
of lasers other than those mentioned. For more details, please
consult with the manufacturer for the most suitable glasses.
4. Choose a high OD protection level
OD laser filters were designed to reduce specific wavelengths into
the eyes while allowing some normal light to pass through the eye.
This absorption or filtering capability of the lens is expressed
via OD, which is the attenuation of light through the optical
filter.
| Rating | Transmittance | Light transmittance reduction |
| OD 1 | 10-1 | 10x |
| OD 2 | 10-2 | 100x |
| OD 3 | 10-3 | 1000x |
| OD 4 | 10-4 | 10,000x |
| OD 5 | 10-5 | 100,000x |
| OD 6 | 10-6 | 1,000,000x |
| OD 7 | 10-7 | 10,000,000x |
| OD 8 | 10-8 | 100,000,000x |
