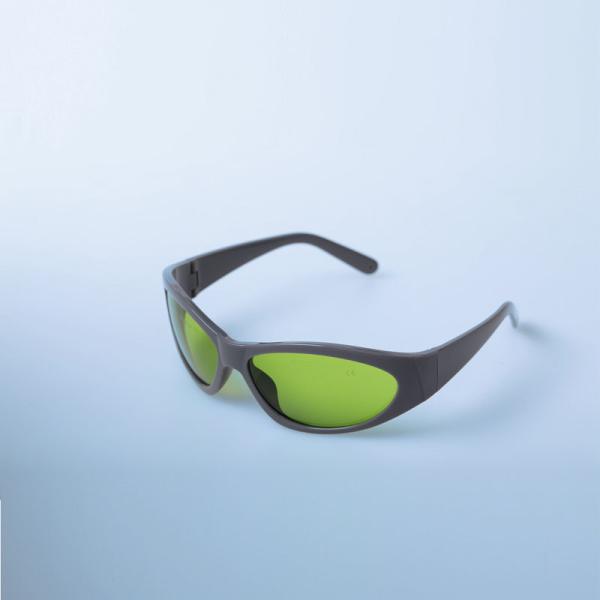

| Model No.: | YHP | Protect Wavelength: | 800-1100nm |
|---|
| Transmittance: | 60% | OD Value: | OD5+@800-1100nm & OD7+@1060-1070nm |
|---|
| Material: | Polycarbonate | Suit for: | 808nm, 980nm, 1064nm etc., |
|---|
| Frame#: | 55 | Application: | Diode Laser, ND:YAG Laser |
|---|
LaserPair recommends that you wear laser safety glasses when the
laser class is greater than Class 1. Choose different laser safety glasses according to different laser
wavelengths and working environments.
Advantage:
1. On-time delivery.
2. Own Manufacturing & Own Quality control.
3. Protects you from particles, dust, or spray.
4. The lenses are clear allowing a maximum visible light
transmission.
Related Products:
Our factory laser safety glasses strictly according to ANSI Z136
and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
Logo Customized Type
1.Silkscreen Printing
This printing method is available for nearly all of our products
which is also the most popular and wild ly used printing method,
Not suitable for complex logos with a graduated tint or more than 4
different colors.
Quality Control
QC INTRODUCTION:
Our QC department is composed of 3 QC engineers and 5 QC
assistants,with the expanding of our output,more QC staffs are
needed. We strictly conduct international quality standards to meet
the clients demands.
TESTING DETAILS:
Incoming materials have to pass strict examination before being
accepted.
Our Service :
Customized Type: OEM & ODM are acceptable , and we can do free artwork
Quality Control : Our QC department is composed of 3 QC engineers and 5 QC
assistants,with the expanding of
our output,more QC staffs are needed. We strictly conduct
international quality standards to meet the clients demands.
Testing Details : Incoming materials have to pass strict examination before being
accepted.
Payment Ways & Shipping Ways
1; Bank Transfer, Paypal and Western Union
2; Via Courier Express -Door to Door Service. Like DHL , UPS, TNT
,Fedex .etc
