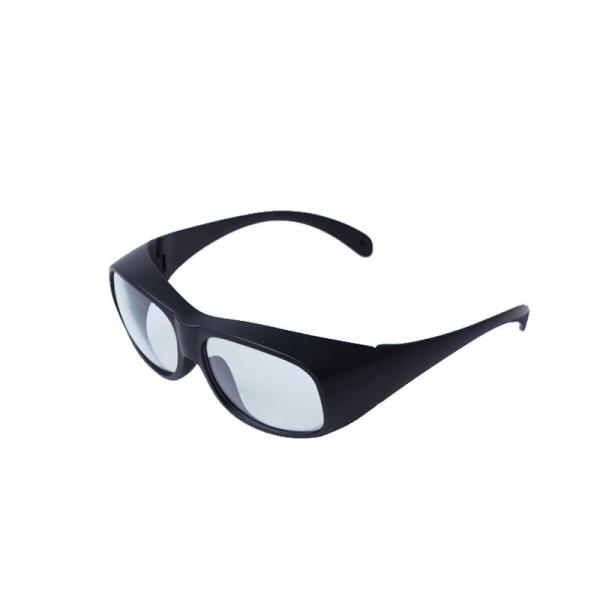

| Model No.: | CHP | Protect Wavelength: | 9000-11000nm |
|---|
| Transmittance: | 90% | OD Value: | 9000-11000nm OD6+ |
|---|
| Material: | PC | Suit for: | 10600nm Etc., |
|---|
| Logo: | Customize Logo | Application: | CO2 Laser |
|---|
Advantage:
1. Superior quality
2. Factory price
3. Environmentally Friendly
4. On-time delivery
5. Customized for production order
Recommend Products
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
Packing Details:
OEM/ODM service is available to us.
Professional gift box
Our Service :
1. Professional team
Well trained to provide you with the best service.
2. Critical quality control
4 steps strict QC for raw-material, online inspection, final
inspection, and pre-shipment inspection.
3. Dedicated details
The detail of the package will be before delivery.
