| Model No.: | RHP | Protect Wavelength: | 600-700nm |
|---|
| Transmittance: | 50% | OD Value: | OD4+@600-700nm |
|---|
| Material: | Polycarbonate | Suit for: | 635nm & 660nm&694nm Etc., |
|---|
| Frame#: | 55 | Application: | Red Laser, Ruby |
|---|
Laser safety glasses visible light transmittance reaches 50%, has
sufficient protection effect 600-700nm (OD 4+).The optical
properties of the lens meet all demand of the standard EN 207.
About this Laser Eye Safety Glasses:
- Designed for Universities, Cosmeticians, Doctors, Industrial etc.
- Suitable for 600-700nm wavelength, see OD vs. Wavelength Curve
below
- Visible Light Transmission (VLT):50%
- Have clear view without flickering
- Made of Hardened Glass
- CE Marked, GJB1762-93, EN207/208 and AU/NZ Standards
600-700nm OD4+ Laser Glasses Advantage:
1. Superior quality
2. Safety glasses with wrap-around design.
3. Flank with unique ventilation and protection system, protect
eyes from splashing all-round.
4. Stable, clear and flexible PVC curved body, fits the face.
Choice Of Frame Styles:
Packing Details:

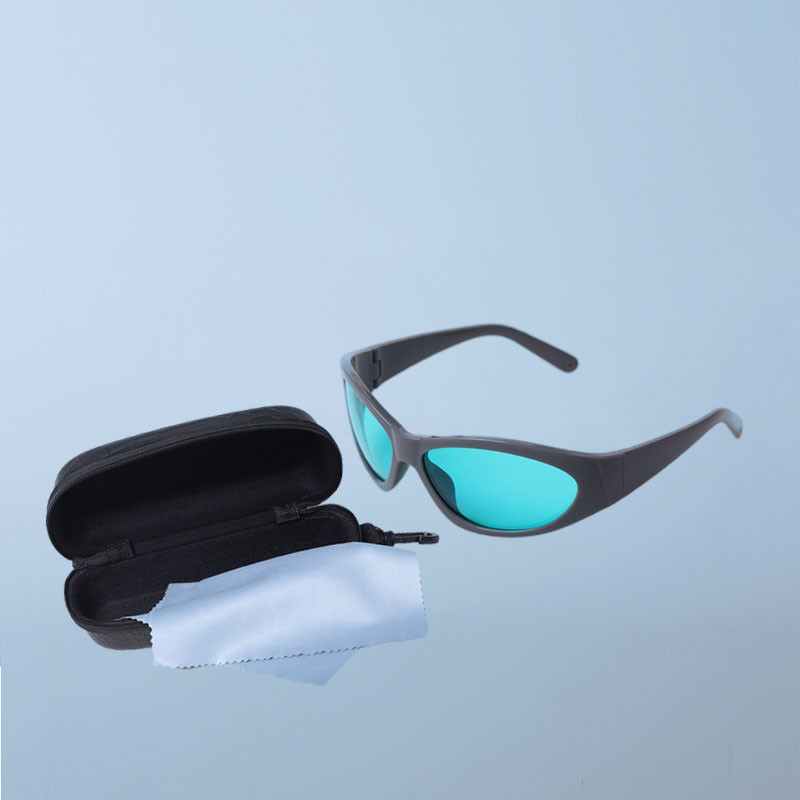

Each pair of safety glasses comes with a protective storage case
and a cleaning cloth.
Related Products:
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
