| Model No.: | RTD-4 | Protect Wavelength: | 630-660nm & 800-830nm & 900-1100nm |
|---|
| Transmittance: | 37% | OD Value: | OD3+@630-660nm & OD3+@800-830nm & OD5+@900-1100nm |
|---|
Lens Type: | Protection | Available for: | 635nm, 660nm, 808nm, 905nm, 980nm etc., |
|---|
Logo: | Customize Logo | Application: | 635nm, 905nm, 980nm Diodes |
|---|
LaserPair recommends that you wear laser safety glasses when the
laser class is greater than Class 1.
Choose different laser safety glasses according to different laser
wavelengths and working environments.

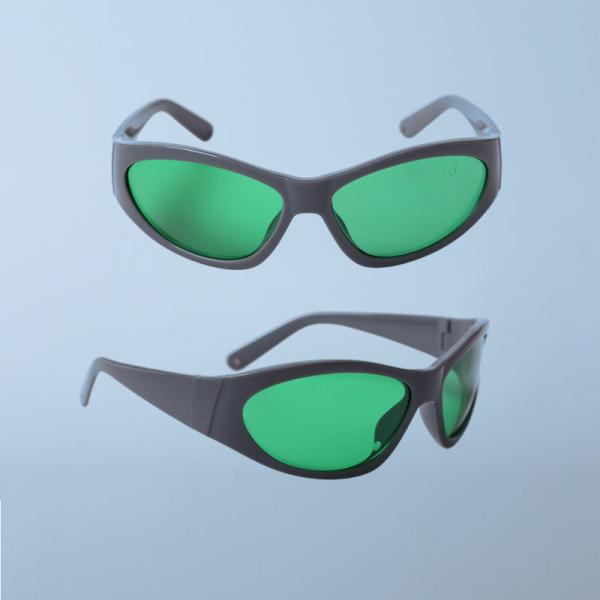

RTD-4 laser safety glasses is designed for absorbing special laser
wavelength to provide safe working condition to our customers.
Advantage of laser safety glasses :
1. Protect Wavelength: 630-660nm&800-830nm&900-1100nm
2. Optical density: 630 - 660nm OD 3+, 800 - 830nm OD 3+, 900 -
1100nm OD5+
3. Visible Light Transmission (VLT): 37%
4. Available for: 635nm, 905nm, 980nm
5. According : CE EN207
6. Application: red lasers, 905&980nm diodes
7.LB-Rating: 630 - 660nm DIR LB3, 800 - 830nm DIR LB3, 900 - 1100nm
DIR LB5
8.Material: PC frame and PC lens
Four Frames: 33/36/52/55
Packing details:
1. OEM/ODM service is available to us.
2. Professional gift box
CE Certificate of Laser Safety Goggles:
Related Products:
Our factory laser safety glasses strictly according to ANSI Z136
and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
