| Model No.: | RTD | Protect Wavelength: | 630-660nm & 800-830nm |
|---|
| Transmittance: | 30% | Application: | Red Laser, 808nm Diodes |
|---|
| Material: | Polycarbonate | Suit for: | 635nm, 660nm, 808nm etc., |
|---|
| L-Rating: | 660-660nm DIR LB3&800-830nm DIR LB5 | OD Value: | OD3+@630-660nm & OD5+@800-830nm |
|---|
Laser Protective Goggles Advantage:
1. Wavelength: 630-660nm & 800-830nm
2. Optical density: OD3+@630-660nm & OD5+@800-830nm
3. Visible light transmittance:30%, all-round absorption
4. Application: red lasers, ruby
5. CE Certified: Standard EN207
6. Application: red lasers, 808nm diodes

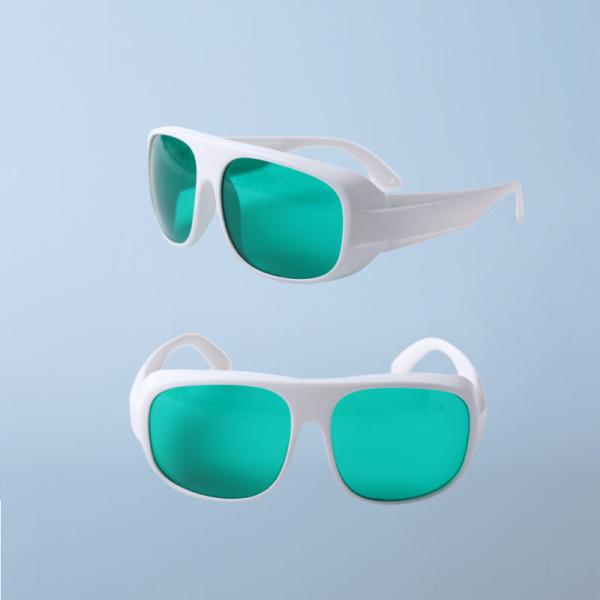

RTD laser safety glasses is designed for absorbing special laser
wavelength to provide safe working condition to our customers. The lens of the glasses are made of macromolecule and laser
absorber. The optical properties of the lens meet all demand of the
standard EN 207.
4 Kinds of Frames Options ( #33/#36/#52/#55)

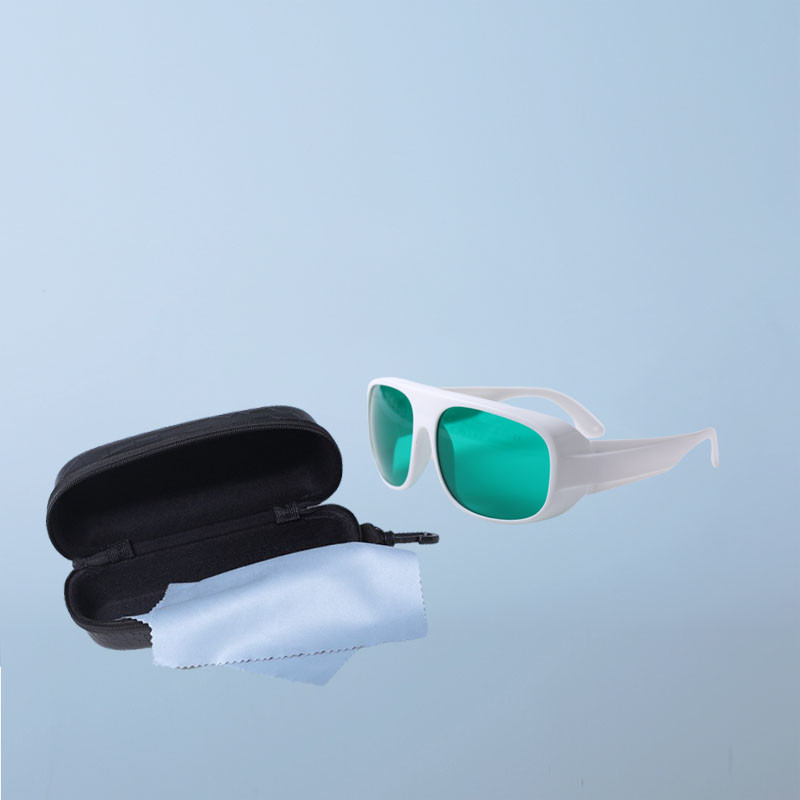

Safe Packing:
Each pair of safety glasses comes with a protective storage case
and a cleaning cloth.
CE Certified:
Quality Control:
Our QC department is composed of 3 QC engineers and 5 QC
assistants,with the expanding of our output,more QC staffs are
needed. We strictly conduct international quality standards to meet
the clients demands.
Related Products:
Our factory laser safety glasses strictly according to CE EN207.
IPL safety glasses and patient eyewear strictly according to CE
EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
