| Model No.: | ATD | Protect Wavelength: | 740-850nm |
|---|
| Transmittance: | 45% | OD Value: | OD5+@740-850nm & OD6+@780-830nm |
|---|
| Material: | Polycarbonate | Suit for: | 755nm, 808nm etc., |
|---|
| Trademark: | Laserpair | Application: | Alexandrite Laser, Diode Laser |
|---|
| Leg Feature: | Base Type | Logo: | Customize Logo |
|---|
ATD laser safety glasses is designed for absorbing special laser
wavelength to provide safe working condition to our customers.
Choose different laser safety glasses according to different laser
wavelengths and working environments. LaserPair recommends that you
wear laser safety glasses when the laser class is greater than
Class 1.
Advantage:
1. Superior quality.
2. Factory price.
3. On-time delivery.
4. Own Manufacturing & Own Quality control.
5. Full protective.
6. Transmittance : 45%
7. Available for:755nm & 808nm
8. Application:alexandrite, 808nm diodes
9. According :CE EN207

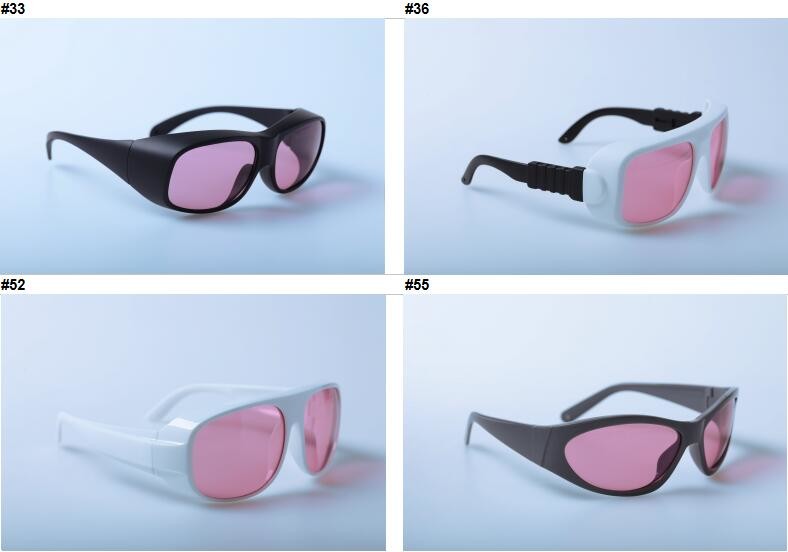

Four Frames For Choosing:
Packing Details:
CE Certificate:
Related Products:
Our factory laser safety glasses strictly according to ANSI Z136
and EN207.
IPL safety glasses and patient eyewear strictly according to EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
|
|
|
| IPL | 200 – 1400nm | 10% | IPL Machine | |
|
|
|
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
